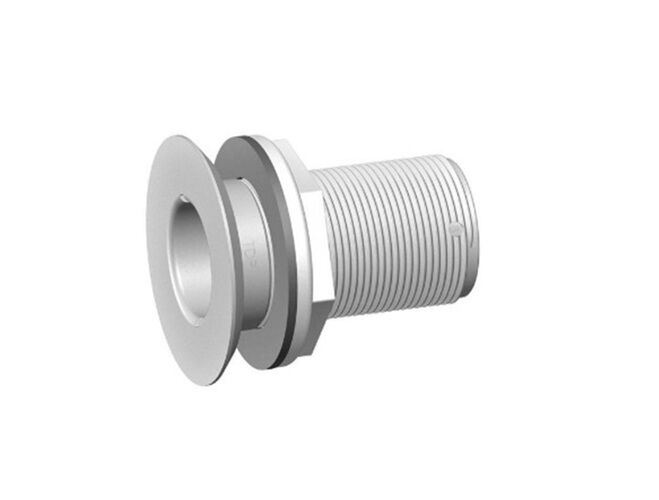

Nylon Thru-hull - Straight & 90 Degree w hose tail

ONLY TRUDESIGN THRU-HULLS ARE FOR BELOW WATERLINE USE

Buying Options

Quantity Image Name Price
TruDesign skin fitting - white threaded 3/4" BSP TruDesign skin fitting - white threaded 3/4" BSP
For installation below waterline
$16.50
In stock
TruDesign skin fitting - white threaded 1" BSP TruDesign skin fitting - white threaded 1" BSP
For installation below waterline
$18.00
In stock
White Nylon Thru-hull 19mm (3/4") ID hose - for 500/750GPH pumps White Nylon Thru-hull 19mm (3/4") ID hose - for 500/750GPH pumps
D1 (Hole size) = 27mm, D2 = 19mm, H = 85.5mm
$8.00
In stock
White Nylon Thru-hull for 25mm (1") ID hose White Nylon Thru-hull for 25mm (1") ID hose
D1 (Hole size) = 33mm, D2 = 25.5mm, H = 90mm
$9.50
In stock
White Nylon Thru-hull 28.5mm (1 1/8") ID hose - for 1,100/2,000GPH pumps White Nylon Thru-hull 28.5mm (1 1/8") ID hose - for 1,100/2,000GPH pumps
D1 (Hole size) = 32mm, D2 = 28.5mm, H = 88mm
$10.50
In stock
White Nylon Thru-hull for 32mm (1 1/4") ID hose White Nylon Thru-hull for 32mm (1 1/4") ID hose
D1 (Hole size) = 41mm, D2 = 32mm, H = 91mm
$10.00
In stock
White Nylon Thru-hull for 38mm (1 1/2") ID hose - Suited to 3000GPH bilge pumps White Nylon Thru-hull for 38mm (1 1/2") ID hose - Suited to 3000GPH bilge pumps
D1 (Hole size) = 46.5mm, D2 = 38.5mm, H = 95mm
$11.00
In stock
White Nylon 90 degree Thru-hull 19mm (3/4") ID hose for 500/750GPH pumps White Nylon 90 degree Thru-hull 19mm (3/4") ID hose for 500/750GPH pumps
A = 19.4mm, B = 48mm, C = 73mm, E = 52mm, F = 64mm
$12.00
In stock
White Nylon 90 degree Thru-hull 25mm (1") ID hose White Nylon 90 degree Thru-hull 25mm (1") ID hose
A = 25.8mm, B = 48mm, C = 76mm, E = 52mm, F = 64mm
$13.00
In stock
White Nylon 90 degree Thru-hull 28.5mm (1 1/8") ID hose - for 1,100/2,000GPH pumps White Nylon 90 degree Thru-hull 28.5mm (1 1/8") ID hose - for 1,100/2,000GPH pumps
A = 28.5mm, B = 48mm, C = 76mm, E = 52mm, F = 91mm
$14.00
In stock
Add Selected to Cart

NOTE: ONLY TRUDESIGN THRU-HULLS ARE FOR BELOW WATERLINE USE

These premium nylon straight and right angle (90 degree) thru-hulls are designed for above waterline use.

Made from fibreglass reinforced polyamide (nylon). High UV protection.

Typical applications are for sink, cockpit and bilge drainage.

They are high quality and are highly UV and abrasion resistant.

They are fitted with a hose tail. Always double clamp with AISI 316 hose clamps.

See diagrams to ensure they meet your requirements.

(THRUNY)

SKU THRUNY
Brand Seaflo - Original and Genuine
