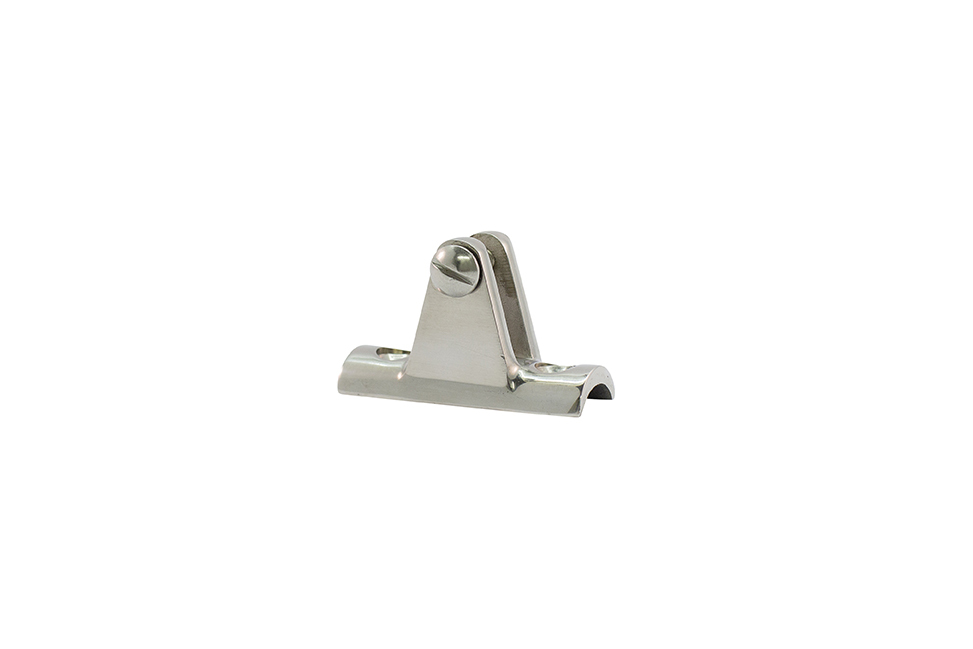

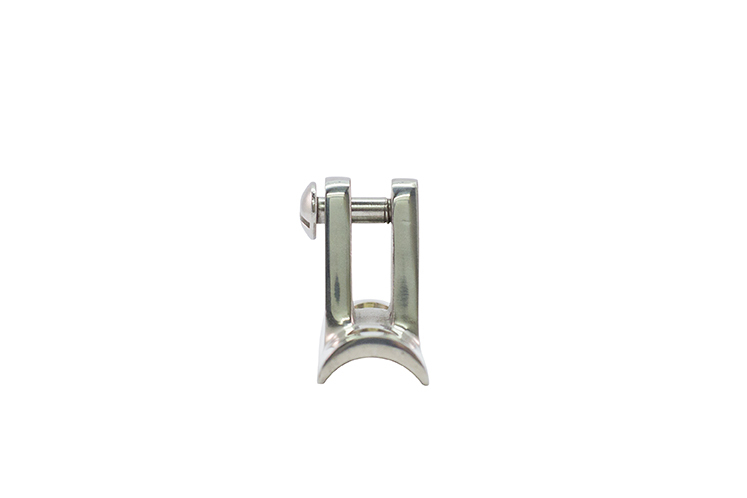

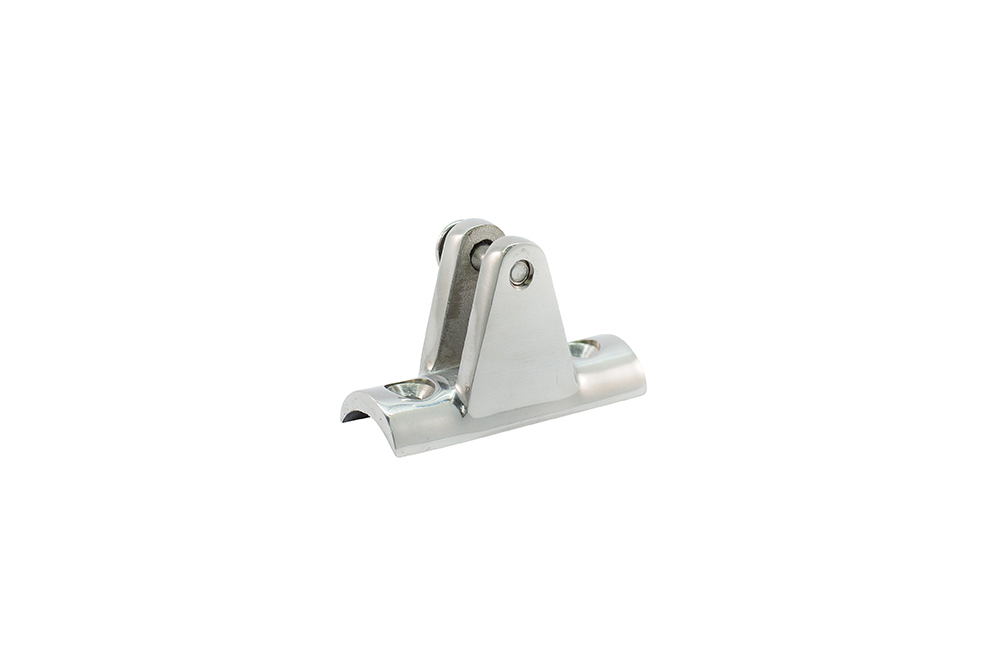

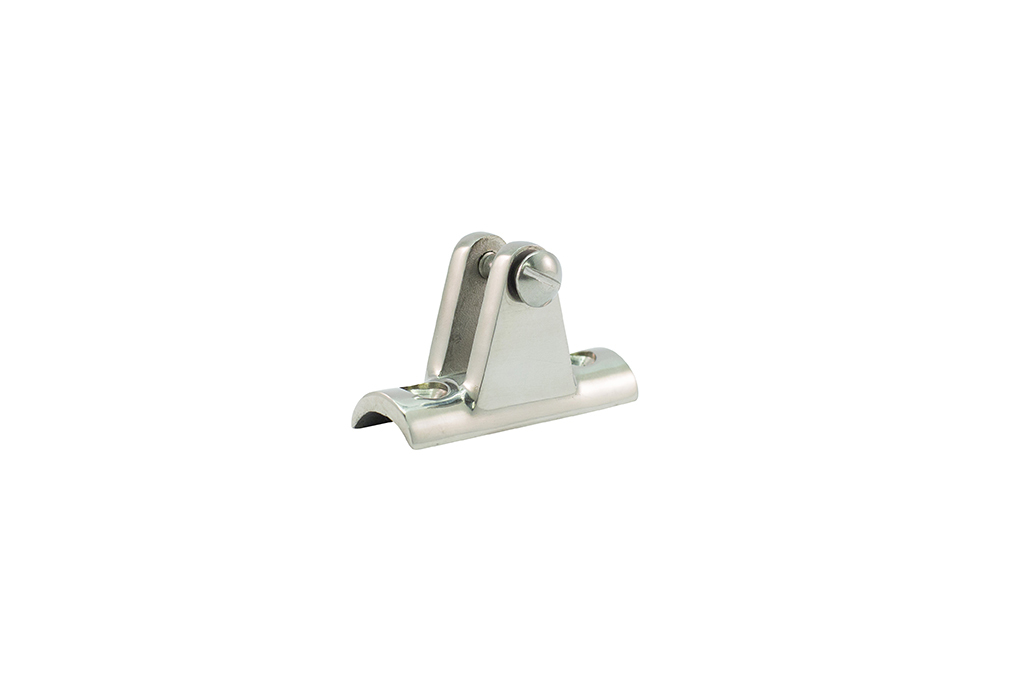

AISI 316 Curved Deck Hinge 90 Degrees for 22mm diameter tube

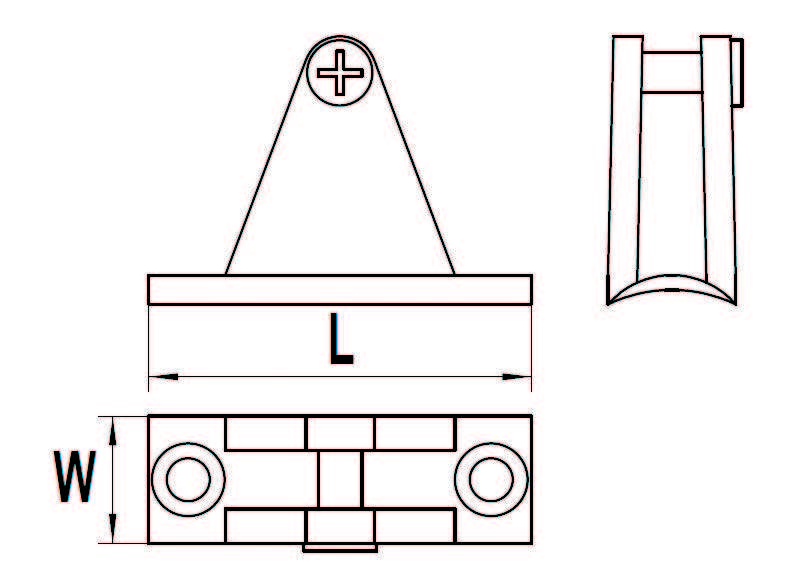

L = 52mm, H = 17mm, Tube Diameter = 22mm

In Stock

Minimum Order Quantity 1

Calculate Shipping

These hinges are especially designed for connecting canopies to a 22mm diameter railing.

The hinge allows the canopy to swing through a 180 degree arc.

Our hinges are cast from AISI 316 marine grade stainless steel and are heavy duty and suitable for the harshest environments. They are polished to a mirror finish.

They all have smooth countersunk holes for fastening with 2 X CSK 10 gauge self tapping screws.

Always use AISI 316 marine grade stainless steel fixings.

Always pre-fill holes with a good quality, marine grade silicone before affixing.


Barcode # 20001400
Brand Proceans
Shipping Weight 0.1000kg
Shipping Width 0.040m
Shipping Height 0.020m
Shipping Length 0.060m
Shipping Cubic 0.000048000m3
Unit Of Measure ea
