Cable Gland IP68

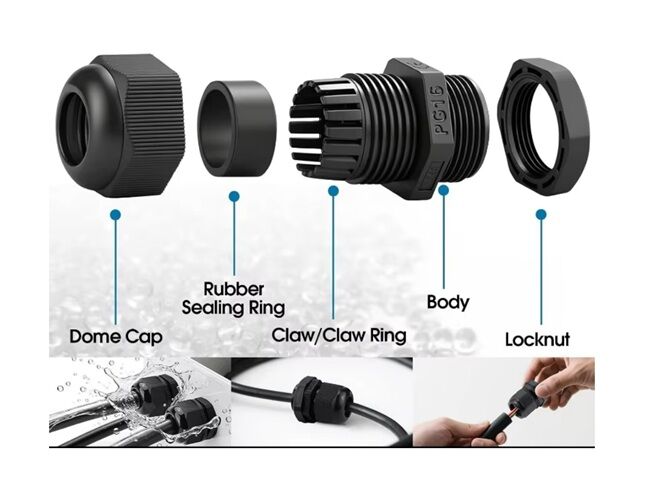

Proceans cable glands are for a mechanical fittings used to securely attach the end of an electrical cable to equipment, providing sealing, strain relief, and environmental protection (dust/moisture). They maintain the IP rating of enclosures, prevent cable pull-out, and can provide earth continuity.

Waterproof rating: IP68
Color: Black
Mounting method: Nut fastening
Ambient temperature: -40°C to 100°C
Features: Highly waterproof, tough with excellent sealing, effective UV resistance, high and low temperature resistance

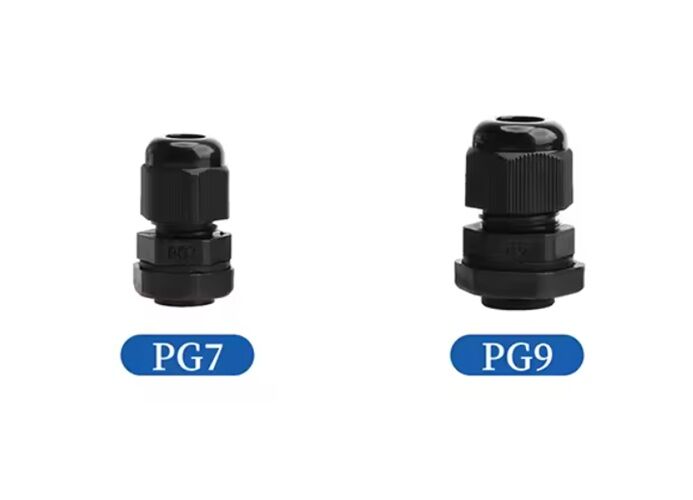

• PG7 Cable Gland:
  • Thread Outer Diameter: 12.5 mm
  • Cable Range: 3 mm to 6.5 mm
  • Common Use: Small sensors, small data cables
• PG9 Cable Gland:
  • Thread Outer Diameter: 15.2 mm
  • Cable Range: 4 mm to 8 mm
  • Common Use: Power and data cables



(CABLEGLAND)
