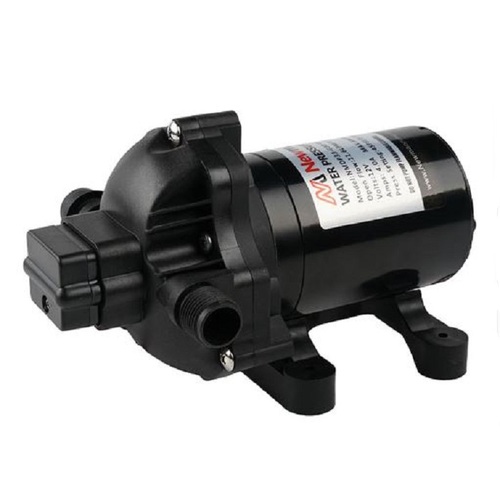

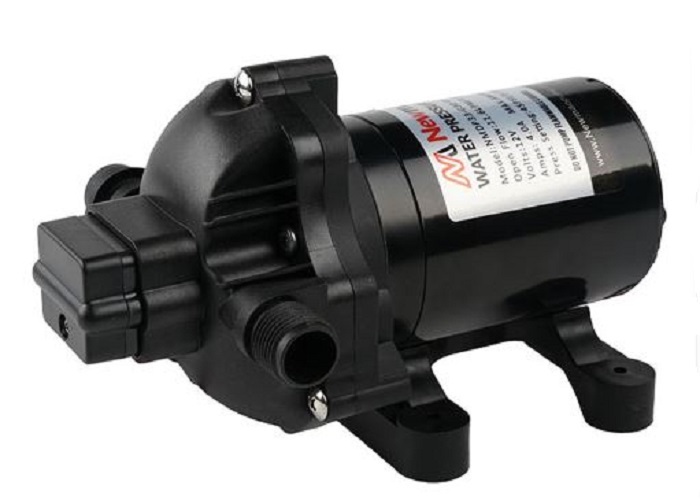

Series 33 12V Diaphragm Pump Max Flow 11.6LPM @ 45PSI

2 Year Unconditional Warranty

PLEASE NOTE: This pump is supplied with a spare pressure switch and diaphragm

Proceans sea-flow Series 33 is an intermittant duty 12 volt on demand positive 3 chamber displacement pump.

Series 33 pumps provide reliable performance in moderate water flow, high-pressure applications.

The pump provides reliable performance in moderate water flow, medium-pressure applications. This 3 chamber diaphragm pump provides up to 11.6 litres per minute and is capable of self-priming up to 1.8 meters. This pump can run dry without damage.

These automatic demand water system pumps have a built-in pressure switch, automatically starting/stopping when the fixture is opened/closed.

They are simple to install and service.



Model	Series	Voltage	Open Flow	Shut-off Pressure	Max Draw	Control Type	Valves	Diaphragm	Fittings	Wire Connections
			（US GPM/LPM）	（PSI/BAR)
SFDP1-028-045-33	Series 33	12V	3/11.6	45/3.1	6 Amps	Switch	EPDM X 3	Santoprene	1/2" Pre-Filter 1/2" BSP X 12mm Hose tails	2-Pin/Leads



Product Data Comparison for Proceans sea-flow Diaphragm Pumps

Model	Volts	Amps	Fuse (amps)	LPM	PSI	Ports (inch)	Chambers	Length (mm)	Width inc Base (mm)	Height (mm)	Weight (Kgs)
Series 22	12	6	9	5	100	3/8" Tail	2	187	98	72	1.1
Series 33	12	8	10	11.6	45	1/2" MBSP	3	210	132	124	1.9
Series 42	12	6	10	9.5	55	1/2" MBSP	4	212	125	110	1.9
Series 51	12	15	20	19.0	70	1/2" MBSP	5	220	150	134	2.7



(SFDP1-030-045-33)
